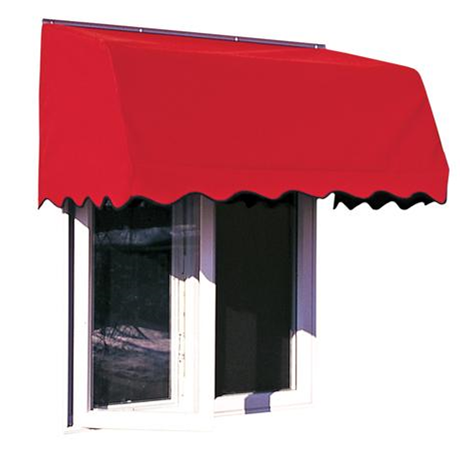

Series 4700 Fabric Casement Window Awning with Sides

One of our best-selling outdoor window shades, the Series 4700 Fabric Awning makes homes more energy-efficient by reducing the amount of sunlight that enters the home. An easy installation makes these Sunbrella fabric awnings both practical and cost-effective. All of our awnings come with a 5-year warranty. For more information about our custom outdoor window awnings, review the information below, then contact Home Porch & Patio Kits today.

Series 4700

Casement Fabric Window Awning with Sides

Protects windows and furnishings from direct rays of the sun
Helps to reduce summer cooling costs
The bronze finish framework will never rust
Available in 100+ Sunbrella fabric patterns and colors
Adds beauty and value to your home
Easy to remove for winter storage (not designed for snow loads or commercial applications)
Hardware included for quick and easy installation
All pricing is the delivered cost within the contiguous USA

These are designed for casement wind-out windows measuring 18″ wide or less. Casement awnings require a minimum of 6″ above the window for mounting.

5 Year Warranty

Proudly made in U.S.A. for over 25 years!

PRICING INSTRUCTIONS: Your awning can be made to the inch. Measure the size you need.
If it falls between widths on the pricing table, price it out to the next highest price level. Get the size you need!

Series #4700 Fabric Window Awning

All pricing given below is the delivered cost! We ship this product throughout the contiguous USA

Model	6	7	8	9
Projection	30″	32″	35″	38″
Drop	25″	31″	37″	40″

Frame Width	6	7	8	9
24″ – 36″	$359.10	$365.75	$402.80	$435.10
42″	$368.60	$379.05	$414.20	$459.80
46″	$391.40	$396.15	$443.65	$471.20
54″	$407.55	$414.20	$471.20	$491.15
60″	$415.15	$420.85	$480.70	$496.85
66″	$439.85	$444.60	$494.00	$526.30
72″	$447.45	$463.60	$502.55	$533.90
84″	$476.90	$493.05	$518.70	$563.35
90″	$563.35	$582.35	$587.10	$633.65

Steps to placing your order:

Step 1

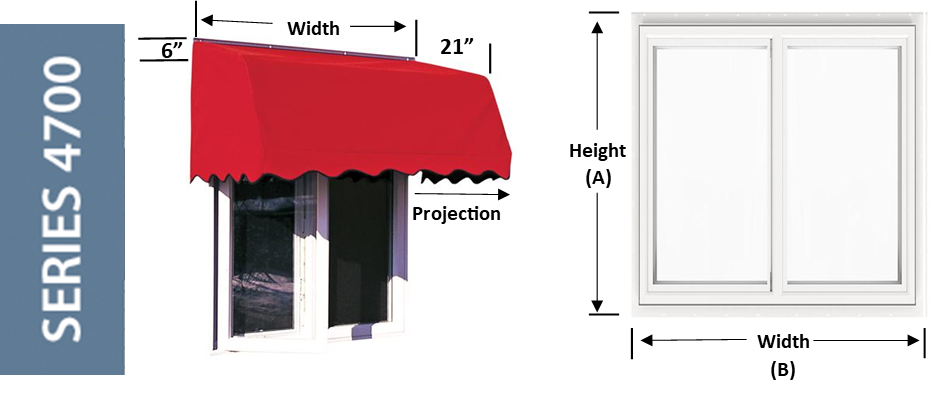

Per the instructions below, measure the outside edge of the window frame to the outside edge of the window frame for both your height (A) and width (B).
The DROP measurement of the awning is how much of the window will be covered once the awning is installed. Choosing one of the drops in the table below will determine the Model # for your awning. For example, if your window is 48″ tall and you want to cover half of it, the Model #7 with a 26″ drop is what you need. A projection of 32″ is defined by the Model #7.
IMPORTANT: Your total DROP measurement needs to include a minimum of 6″ of mounting space above the top of the window.

The DROP associated with the “Window Height” (A) is only a suggestion. You may choose any of the drops within the table you wish. Choose the DROP & PROJECTION from the chart below that best suits your needs.
If mounting the awning on the window casing, measure from the outside edge of the window casing to the outside edge of the window casing (B). This will be the width of your awning. If you are mounting the awning on the wall, select any desired width, allowing for a minimum of 1½” on each side of the framing for mounting hardware. Sides cannot be mounted on shutters. Custom widths up to 90″ in 1-inch increments.

Awning Model	6	7	8	9
For Window Heights of	46″	56″	66″	76″
Projection	30″	32″	35″	38″
Drop (Approx.)	25″	31″	37″	40″

Step 2

Select the fabric color and pattern that best complements your home. All fabrics are high-quality, 100% solution-dyed Sunbrella marine weave. All framing on fabric window awnings is bronze-finished aluminum and will not rust.
