Series 3300 Fabric Window Awnings

Residential Window Awnings

Sunbrella Fabric Window Shades

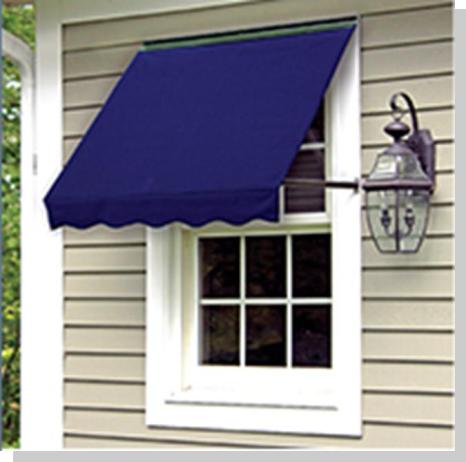

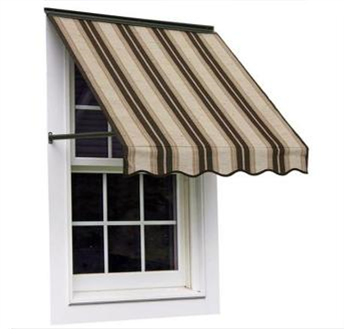

Series 3300 Window Awning with Support Arms

One of our best-selling outdoor window shades, the Series 3300 Fabric Awning makes homes more energy-efficient by reducing the amount of sunlight that enters the home. An easy installation makes these Sunbrella fabric awnings both practical and cost-effective. All of our awnings come with a 5-year warranty. For more information about our custom outdoor window awnings, review the information below, then contact Home Porch & Patio Kits today.

Series 3300

Fabric Window Awning with Support Arms

Protects windows and furnishings from direct rays of the sun
Helps to reduce summer cooling costs
The bronze finish framework will never rust
Available in 100+ Sunbrella fabric patterns and colors
Adds beauty and value to your home
Easy to remove for winter storage (not designed for snow loads or commercial applications)
Hardware included for quick and easy installation
All pricing is the delivered cost within the contiguous USA

5 Year Warranty

Proudly made in U.S.A. for over 25 years!

This awning does not work with casement windows.
Please see Series 4300 or Series 4700

PRICING INSTRUCTIONS: Your awning can be made to the inch. Measure the size you need.
If it falls between widths on the pricing table, price it out to the next highest price level. Get the size you need!

Series #3300 Fabric Window Awning

All pricing given below is the delivered cost! We ship this product throughout the contiguous USA

Model	4	5	6	7	8
Projection	15″	18″	23″	27″	31″
Drop	19″	23″	28″	32″	37″

Frame Width	4	5	6	7	8
24″ – 36″	$239.40	$247.00	$275.50	$290.70	$309.70
42″	$257.45	$266.95	$283.10	$303.05	$317.30
48″	$287.85	$295.45	$303.05	$312.55	$354.35
54″	$301.15	$306.85	$316.35	$324.90	$361.00
60″	$313.50	$323.00	$328.70	$339.15	$365.75
66″	$328.70	$331.55	$346.75	$347.70	$390.45
72″	$336.30	$346.75	$353.40	$354.35	$406.60
84″	$362.90	$368.60	$373.35	$384.75	$418.95
90″	$429.40	$433.20	$439.85	$452.20	$466.45

Steps to placing your order:

Step 1

Per the measuring instructions below, measure the outside edge to outside edge of the window frame for both your height (A) and width (B).

The DROP measurement of the awning is how much of the window will be covered once the awning is installed. Choosing one of the drops in the table below will determine the Model # for your awning. For example, if your window is 48″ tall and you want to cover half of it, the Model #5 with a 23″ drop is what you need. A projection of 18″ is defined by the Model #5.

The DROP associated with the “Window Height” (A) is only a suggestion. You may choose any of the drops within the table you wish. Choose the DROP & PROJECTION, using the chart below, that best suits your needs.

If mounting the awning on the window casing, measure the outside edge to the outside edge of the window casing (B). This will be the width of your awning. If you are mounting the awning on the wall, select any desired width, allowing for a minimum of 1½” on each side of the framing for mounting hardware. Sides cannot be mounted on shutters. Custom widths up to 90″ in 1-inch increments.

Awning Model	4	5	6	7	8
For Window Heights of Approximately	36″	46″	56″	66″	76″
Projection	15″	18″	23″	27″	31″
Drop (Approx.)	19″	23″	28″	32″	37″

Step 2

Select the fabric color and pattern that best complements your home. All fabrics are high-quality, 100% solution-dyed Sunbrella marine weave. All framing on fabric window awnings is bronze-finished aluminum and will not rust.
