Watch the video to learn more
We will be pleased to email you a 'no obligation' / 'delivery included' estimate you can count on.
First see if we can deliver to you...
Then...
You will receive...

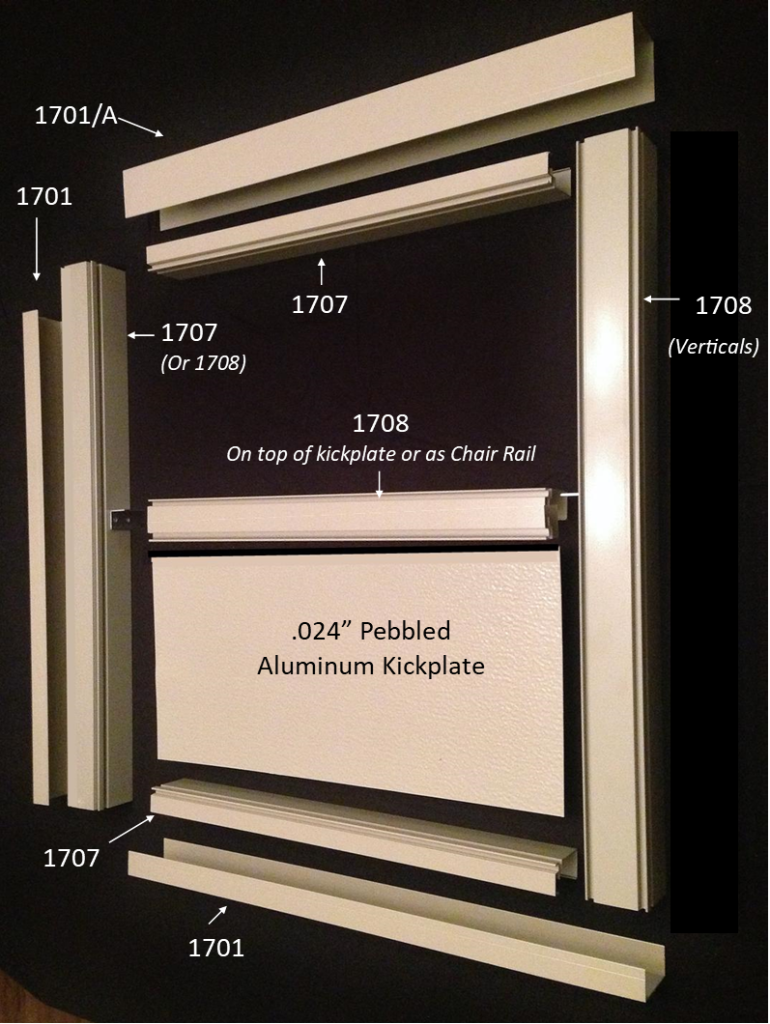

24′ lengths of 3 aluminum profiles to be cut, on site, by you, according to the heights and widths required to create your screen walls (see exploded view below). We include a drawing for your reference with your quotation.
Either a horizontal chair rail or a bottom kick-plate.
Your material is available in one of 5 colors (white, clay, ivory, black & bronze). *Note: not all profiles are available in all colors.
Your desired number of 36″ x 80″ Screen Doors with 14″ bottom kick-plate, handles, and closers
All necessary 1/2″ TEK screws to screw your profiles together.
All necessary screening and spline to finish the job.
*Hardware to secure U channels to existing walls, posts, roofline, and floors sourced locally by the customer.
These screen enclosure materials are perfect to create that long sought after outdoor living space at a fraction of the price of having a contractor build it. We provide all the aluminum, screws, clips and screening – – everything internal to the installation. You provide the tools and labor. Our screened wall kits are basically custom designed to fit your specific application. High quality, durable and maintenance free – – all at a price that will not break the bank and it comes with all the help you need from Home Porch & Patio Kits Inc.
Materials...
Used In This Way...

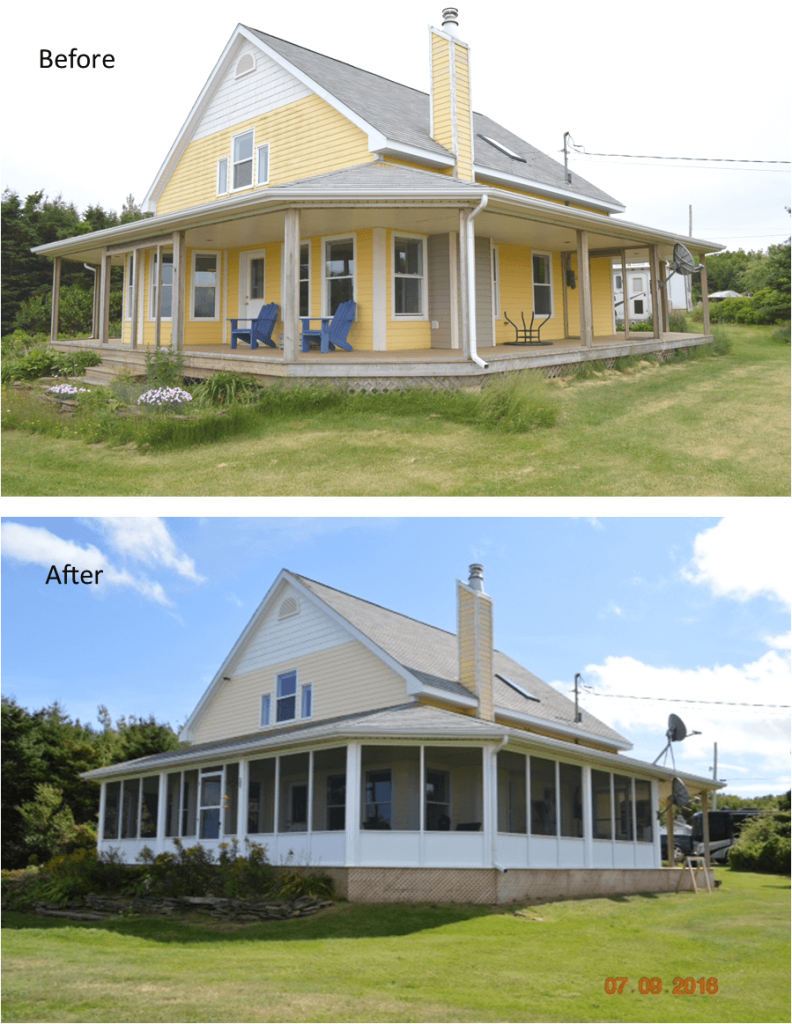

Creates This!
Doing it yourself does not mean doing it alone!
Toll Free: 1.844.404.0484
We have been doing this for 20+ years…
You can be confident with the answers we give.
General Information on our Aluminum Screen Wall Materials

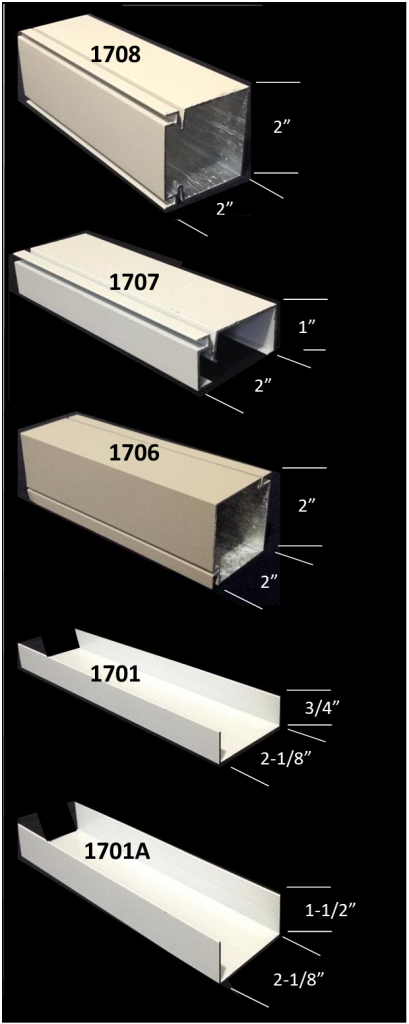

All framing is extruded aluminum

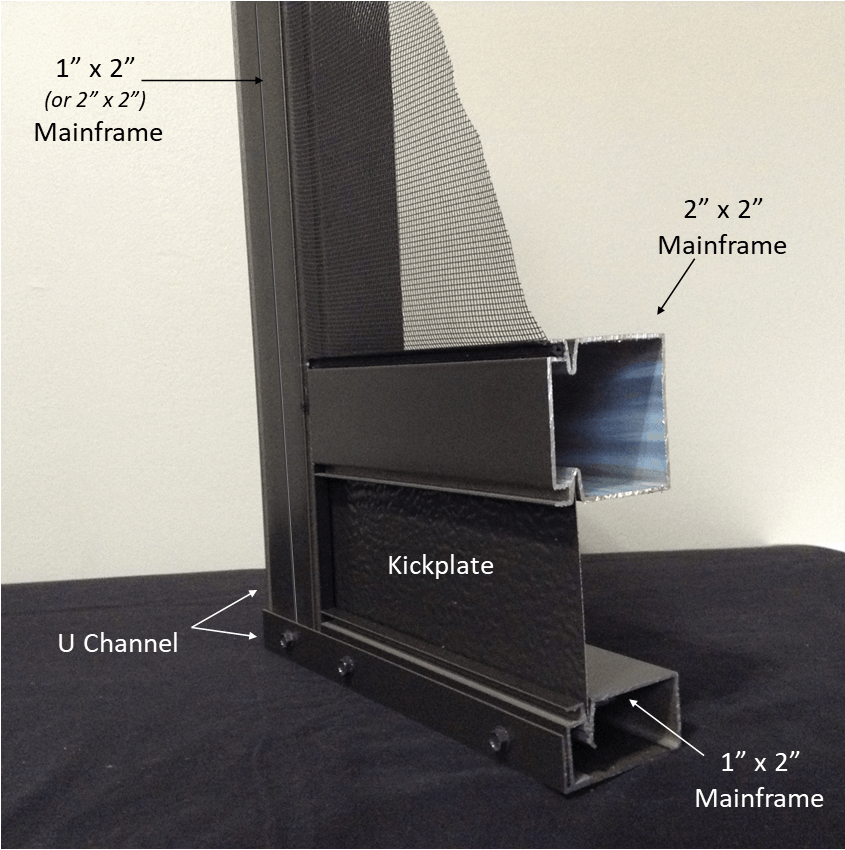

Mainframe aluminum wall thickness is .048″ thick | U channel aluminum wall thickness is .050″ thick
All framing has a baked on polyester enamel finish (Warranty)
Standard 18×16 screening is included in the materials supplied. There are a variety of screen types available, found on the following page (click here) of our WEB site.
This ‘materials supplied’ kit is a permanent installation. There is no provision for a seasonal (up in the Spring – down in the Fall) installation with this product.
Aluminum extrusions are available in WHITE / CLAY / BRONZE / BLACK
Some of the tools you may need (depending on the complexity of your installation are: 4 ft. Carpenter’s level | Chalk line | Chop saw with a metal cutting blade on it | Cordless drill/nut driver | Masonry bits for drilling into concrete | masonry fasteners (if necessary) | Caulking gun | Metal file | Hammer | Screwdrivers | Drill | tape measure | Box knife | Gloves | Safety eye‐wear. (This is not meant to represent a comprehensive list)
Hardware to secure the U channels to existing surfaces is to be supplied by the customer and purchased locally.
Sealant / caulking for the screen wall assembly is to be purchased locally.
Any requirement for downspout assemblies is determined by the customer and purchased locally.
These screen enclosure materials are perfect to create that long sought after outdoor living space at a fraction of the price of having a contractor build it. We provide all the aluminum, screws, clips and screening – – everything internal to the installation. You provide the tools and labor. Our screened wall kits are basically custom designed to fit your specific application. High quality, durable and maintenance free – – all at a price that will not break the bank and it comes with all the help you need from Home Porch & Patio Kits Inc.
A Few Extra Notes:
- Standard 3′ wide x 6’8″ tall screen doors (picture on the right) are available as an option. You can request as many doors as you need or you can supply your own doors. All doors come with a 14″ kick-plate already installed. You may go to the following page for more details.
- You may also choose one of our optional pre-installed pet doors. They come in sizes of small, medium and large sizes. You may go to the following page for more details.
- Also, as an option, you can install an 18″ or 24″ tall kick-plate in the bottom of the screen panels that you build.
- Should you choose not to install a kick-plate, we will supply enough 1708 – 2″ x 2″ mainframe for you to use between verticals as a chair rail. Install this at whatever height you wish. Have a seat in your favorite chair and install it at a height that does not interfere with your site-lines.
- When you submit your request for quotation (click here) we will put together, not only the cost for materials, but a drawing of your application with our suggested spacing of verticals – – the size of screen panels that you will be creating. Generally, they will range from 32″ to 60″ wide panels and it will depend on the entire scope of your project.
The manufacturer reserves the right to send longer/wider than ordered material.
As a DIY application the DIY customer will make the final cuts on site in order to achieve the desired finished size.
We Are Here For You!
We have access to all the engineering on all our components so we can help make sure that what you build will last a lifetime! Our people are not commissioned, so there are no sales pressures and no need to ‘upsell’ you on something you actually don’t need. We are simply here to help and get you the DIY materials you need to accomplish your goals!
