Create a New Living Space with Modular Walls!
Alpha Plus Modular Sunroom System
"WeatherGuard" Structural Insulated Roof: 16' x 20' (White)
Using 6″ thick insulated panels (1.5 lb. Density foam with a .024″ laminated aluminum skin), includes all panels (White), rear hanger channel (Almond), extruded aluminum drip edge fascia (Almond), screws & sealant. Roof installation pitches at 1/2″ per foot of projection. Panels will span 16’3″ under 30 psf / 90 mph loading.
**Load requirement verification is the customer’s responsibility
Insulated Modular Sunroom Walls
16′ (single wall) | 19’6″ (single wall) | 16′ (single wall) – wall heights from 8’5″ to 7’9″ as indicated in drawing. 3.5″ thick TuffCore clad EPS core walls (Almond) | Almond extruded aluminum structural framing with TuffCore vinyl-coated polystyrene core insulated filler sections. The insulated core sections are in place and can be trimmed on site by the customer to accommodate exact sizes for each section, slopes, and non-square corners. Installation includes 6 electrical utility mullions.
Estimated Delivery time is in the 8-10 week range.
Vinyl Windows
Vinyl windows constructed with 3 ¼” thick framing, dual cam locks & our EZ Glide Quad Roller system.
- (6) 42″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
- (2) 36″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
- (2) 54″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
- All sliding windows come with fixed exterior screens
All window frames: White | All door frames: Almond | Roof Extrusions: Almond
All TuffCore panels: Pebble finish (exterior) panels: Almond
All TuffCore panels: Pebble finish (interior) panels: Almond
All Aluminum extrusions: Almond
Transoms & Kickplates
Solid EPS core fill above all windows and doors
24″ glass kickplates | 1” Sealed Double Pane Low E below all windows as indicated in the drawing
2″ EPS Core fill below all kickplates
Doors
Easy-to-operate sliding patio doors with welded vinyl, continuous weather stripping & warm-edge elastomeric separators
(2) 72″ wide x 80″ high sliding patio doors | 1” Sealed Double Pane Low E Glass
*As a DIY application the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by customer.
(delivered to Boulder, CO)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for the size of your DIY modular sunroom, delivered to your location, familiarize yourself with our product, and then go to the link below.

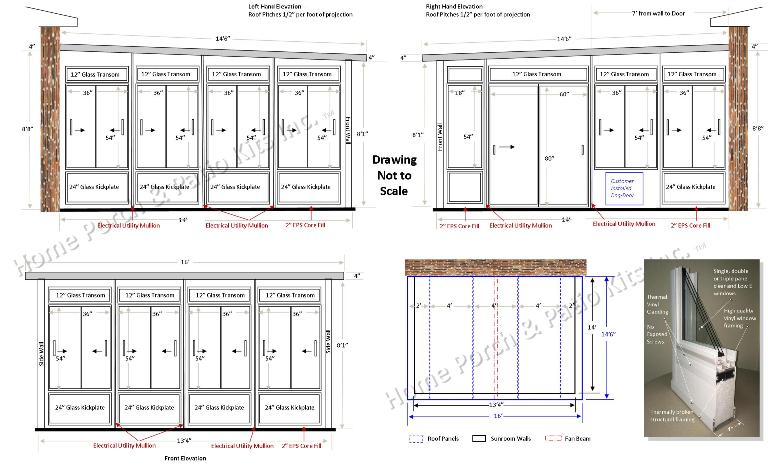

OMEGA Modular Sunroom System
"WeatherGuard" Structural Insulated Roof: 14'6" x 16' (White)
Using 4″ thick insulated panels (1.5 lb. Density foam with a .024″ laminated aluminum skin), includes all panels (White), rear hanger channel (Almond), extruded aluminum side fascia and front gutter (Almond), screws & sealant. (4) x 4′ wide panels will be supplied. (1) fan beam will be installed in the center length of (1) 4′ wide panel. The customer will rip a non-fan beam panel in half for placement on each end of the installation, centering the fan beam panel. The customer will determine the finished width of the roof by trimming back the 2′ wide sections. Roof installation pitches at 1/2″ per foot of projection. Quote includes 1 downspout assembly. Panels will span 15’6″ under 15 psf / 100 mph loading.
**Load requirement verification is the customer’s responsibility
Insulated Modular Sunroom Walls
14′ (single wall) | 13’4″ (single wall) | 14′ (single wall) – wall heights from 8’8″ to 8’1″ front wall height as indicated in drawing. 4″ thick vinyl clad aluminum walls (Almond) | Almond extruded aluminum structural framing with TuffCore vinyl coated polystyrene core insulated filler sections. The insulated core sections are in place so as to be trimmed on site, by the customer, to accommodate exact sizes for each section, slopes and non-square corners. Installation includes 8 electrical utility mullions.
Estimated Delivery time is in the 8-10 week range.
Vinyl Windows
Vinyl windows constructed with 3 ¼” thick framing, dual cam locks & our EZ Glide Quad Roller system.
(10) 36″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
(1) 18″ wide x 54″ high fixed window | 1” Sealed Double Pane Low E Glass
All sliding windows come with fixed exterior screens
All window & door frames: Almond
All TuffCore panels: Pebble finish (exterior) panels: Almond
All TuffCore panels: Pebble finish (interior) panels: Almond
All Aluminum extrusions: Almond
Transoms & Kickplates
12″ glass transoms | 1” Sealed Double Pane Low E Glass (Smart 60) above all windows & doors as indicated in the drawing
24″ glass kickplates | 1” Sealed Double Pane Low E Glass (Smart 60) below all windows as indicated in the drawing
Doors
Easy-to-operate sliding patio doors with welded vinyl, continuous weather stripping & warm edge elastomeric separators
(1) 60″ wide x 80″ high sliding patio doors | 1” Sealed Double Pane Low E Glass (Smart 60)
*As a DIY application, the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel, and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by the customer.
(delivered to Salt Lake City, UT)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for the size of your DIY modular sunroom, delivered to your location, familiarize yourself with our product, and then go to the link below.

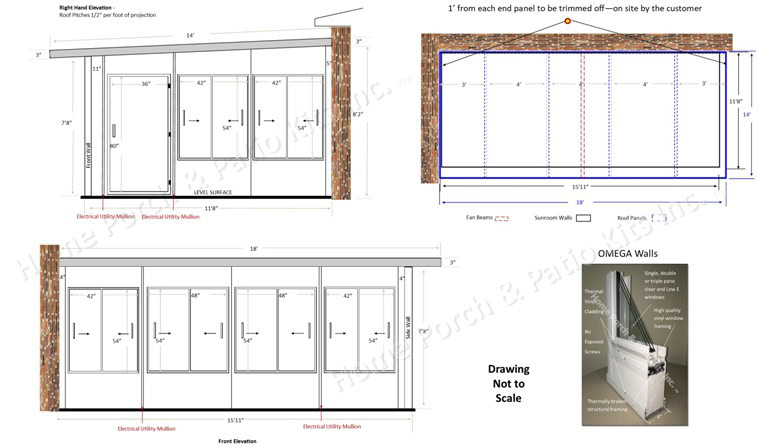

OMEGA Modular Sunroom System
"WeatherGuard" Structural Insulated Roof: 14' x 20' (White)
Using 3″ thick insulated panels (1.5 lb. Density foam with a .024″ laminated aluminum skin), includes all panels (White), rear hanger channel (White), extruded aluminum side fascia and front gutter (White), screws & sealant. Roof installation pitches at 1/2″ per foot of projection. Panels will span 14’7” under 10 psf / 90 mph loading. Quote includes 2 downspout assemblies. Quote includes 1 fan beam installation. Customer to trim 1’ off the first & last roof panel to get the 18’ finished width.
**Load requirement verification is the customer’s responsibility
Insulated Modular Sunroom Walls
15’11” (single wall) | 11’8” (single wall) – wall heights from 8’2” to 7’8” front wall height as indicated in drawing. 4″ thick vinyl-clad aluminum walls (White) | White extruded aluminum structural framing with TuffCore vinyl-coated polystyrene core insulated filler sections. The insulated core sections are in place and trimmed on site by the customer to accommodate exact sizes for each section, slopes, and non-square corners. Installation includes 4 electrical utility mullions.
Estimated Delivery time is in the 8-10 week range.
Vinyl Windows
Vinyl windows constructed with 3 ” thick framing, dual cam locks & our EZ Glide Quad Roller system.
(2) 48″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
(4) 42″ wide x 54″ high sliding windows | 1” Sealed Double Pane Low E Glass
All sliding windows come with fixed exterior screens
All window & door frames: White
Roof Extrusions: White
All TuffCore panels: Stucco finish (exterior) panels: White
All TuffCore panels: Pebble finish (interior) panels: White
All Aluminum extrusions: White
Transoms & Kickplates
Solid transoms above all windows & doors
Solid kick-plates below all windows
Doors
Swing doors are 1-3/4” thick, standard with nickel-plated hardware. Continuous Q-lon weather stripping around door jamb and threshold – with state-of-the-art, warm-edge elastomeric separator. Utility Mullions (Raceways) on both sides | Continuous Hinges | Existing Hinge Adjuster provided | Bottom Adjuster provided | Q-Lon Kit (3 Piece) | Threshold
(1) 36″ wide x 80″ high [in-swing] pedestrian door | 1” Sealed Double Pane Low E Glass (Smart 60)
*As a DIY application, the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel, and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by the customer.
(delivered to Pismo Beach, CA)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for the size of your DIY modular sunroom, delivered to your location, familiarize yourself with our product, and then go to the link below.
Approvals & Specifications
I.C.C. Approval (International Conf. of Building Officials) | IRC (International Residential Codes) | IBC (International Building Codes)
CBC (California Building Code) | Meets or Exceeds National Glass Code | Factory Built Housing Approval | C.M.B.S.O.A. Approval (Security Windows)
A-Rated Dual Glass (ALI Laboratories) | U.L. Classified Patented Electrical Raceways | AAMA Approved Windows and Doors
Modular Construction - Easy Installation
A few considerations...
Standard dual sliding windows are available in 36”, 42”, 48”, and 54” widths | All modules require final placement cuts on the jobsite | Modular systems are assembled in a fraction of the time of knock-down assembly systems.
Installation guidelines and support available | Most room sizes can be installed in just 2-4 days | 100% Made in the U.S.A. | List of tools you may need
Life-Time Warranty
- Lifetime Warranty | 20 Year Insulated Glass
- Fully Transferable | Unequalled by any other sunroom
- Incidental Glass Breakage | Warranted as long as you own it!
We Are Here For You!
We have access to all the engineering for all our components, so we can help ensure what you build lasts a lifetime! Our people are not commissioned, so there are no sales pressures and no need to ‘upsell’ you on something you actually don’t need. We are here to help and get you the DIY materials you need to accomplish your goals!
