Kickplate & Transom Options
DURALite Glass

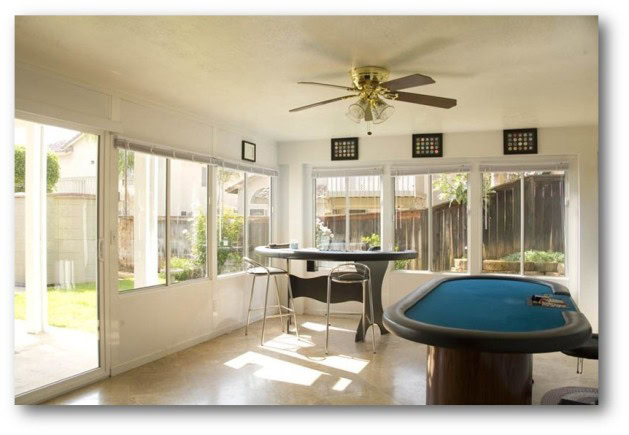

*The pictures on this page are to illustrate the transom & kickplate options. They are not to replace instruction guidelines and may be slightly different than your particular installation.
Standard installation comes with solid EPS core paneling (TuffCore Vinyl skin) both above and below windows and doors (colors & finishes shown below).
As an option all Alpha Plus Wall Systems can have either a 12”or 24” single or double Duralite Glass kickplate and / or transom. All Alpha Plus glass transoms and kick-plates will come pre-assembled and shipped in place in the module.
The Duralite Glass is a standard upgrade on all sunroom systems with single & double pane windows
8 times stronger that residential glass increasing security – nearly unbreakable
Stronger than laminated /safety glass. Decreases chances of breaking – rated as good or better than tempered glass!
Patented warm-edge spacer technology for maximum insulation and minimum air loss
Safe and shatter resistant.
Our standard configurations have the tops of all windows lined up with the top of the door installation. All door installations are 80″ tall to top of door. If you desire a glass kickplate below your windows we will suggest 54″ tall windows with a 24″ glass kick-plate underneath. This will leave a 2″ solid EPS core fill to trim the wall installation ‘level’ during the module installation.
Note: In order to have a glass transom above your windows and doors you will need to have a minimum finished front wall height of 8′ or more.
TuffCore Panels
Our specialized space age vinyl is laminated on all our EPS core wall panels. This is one of the beautiful aspects of our wall systems, adding strength and a lifetime of low maintenance durability. Durable scratch resistant vinyl laminated on a 1.5 lb. 3.5″ thick expanded polystyrene core. The vinyl is colored all the way through. It is resistant to outdoor exposure, warping, yellowing, aging and staining!
Available in two colors: White or Almond… and in two finishes: Pebbled or Stucco
Approvals & Specifications
I.C.C. Approval (International Conf. of Building Officials) | IRC (International Residential Codes) | IBC (International Building Codes)
CBC (California Building Code) | Meets or Exceeds National Glass Code | Factory Built Housing Approval | C.M.B.S.O.A. Approval (Security Windows)
A-Rated Dual Glass (ALI Laboratories) | U.L. Classified Patented Electrical Raceways | AAMA Approved Windows and Doors
Modular Construction - Easy Installation
A few considerations...
Standard dual sliding windows are available in 36”, 42”, 48” and 54” widths | All modules require final placement cuts on the jobsite | Modular systems are assembled in a fraction of the time of knock-down assembly systems.
Installation guidelines and support available | Most room sizes can be installed in just 2-4 days | 100% Made in the U.S.A. | List of tools you may need
Life-Time Warranty
- Lifetime Warranty | 20 Year Insulated Glass
- Fully Transferable | Unequalled by any other sunroom
- Incidental Glass Breakage | Warranted as long as you own it!
We Are Here For You!
We have access to all the engineering on all our components so we can help make sure that what you build will last a lifetime! Our people are not commissioned, so there are no sales pressures and no need to ‘upsell’ you on something you actually don’t need. We are simply here to help and get you the DIY materials you need to accomplish your goals!
