Create a New Living Space with Modular Walls!

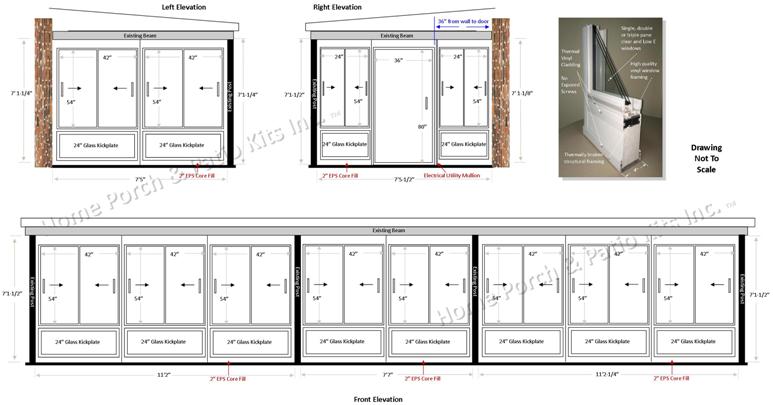

OMEGA Modular "Walls Under" System
Insulated Modular Sunroom Walls
7′ 5″ (single wall) | 7′ 5-1/2″ (single wall) | 11′ 2″ (single wall) | 7′ 7″ (single wall) | 11′ 2-1/4″ (single wall) — 7′ 1-1/2″ approx. wall heights.
‘Dual thermal’ vinyl clad 4″ thick walls (White Framing) | Extruded aluminum structural framing with TuffCore vinyl coated polystyrene core insulated filler sections | Almond pebble finish inside & Almond pebble finish outside. The insulated core sections are in place so as to be trimmed on site, by the customer, to accommodate exact sizes for each section, slopes, and non-square corners. Includes (1) electrical utility mullion
Vinyl Windows
Vinyl windows constructed with 3 ¼” thick framing, dual cam locks & our EZ Glide Quad Roller system.
- (10) 42″ wide x 54″ high standard dual sliding windows | 1” Sealed Double Pane Low E Glass (Smart 60)
- (2) 24″ wide x 54″ high custom dual sliding windows | 1” Sealed Double Pane Low E Glass (Smart 60)
- All sliding windows come with fixed exterior screens
Transoms & Kickplates
- Solid EPS core fill above all windows & doors
- 24″ tall kickplate below all windows | 1” Sealed Double Pane Low E Glass
- Solid 2″ EPS core fill below all kickplates
Doors
Standard Pedestrian Swing doors are 1-3/4” thick and come standard with nickel-plated hardware and continuous Q-lon weather stripping around the door jamb and threshold
- (1) 36″ wide x 80″ high pedestrian door | 1” Sealed Double Pane Low E Glass
*As a DIY application, the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel, and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by the customer.
(delivered to Lake Havasu City, AZ)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for your specific DIY modular sunroom size, delivered to your location, familiarize yourself with our product, then go to the link below.

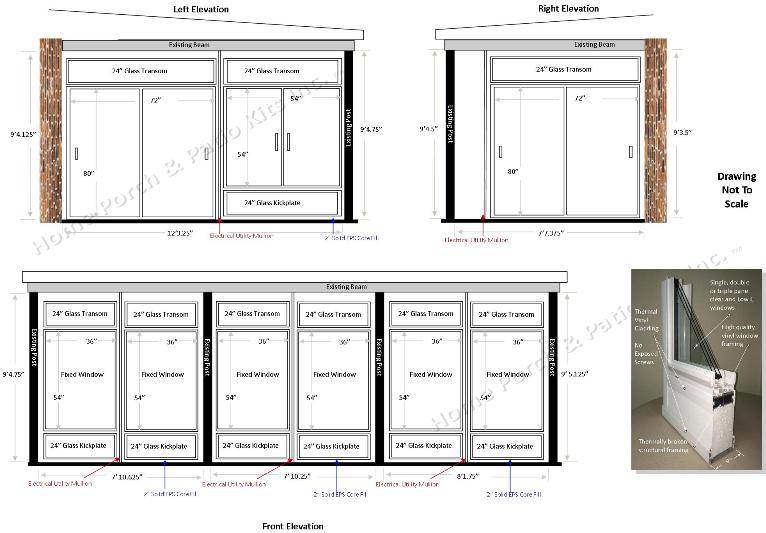

OMEGA Modular "Walls Under" System
Insulated Modular Sunroom Walls
12′ 3.25″ (single wall) | 7′ 10.625″ (single wall) | 7′ 10.25″ (single wall) | 8′ 1.75″ (single wall) | 7′ 7.375″ (single wall) — 9′ 5.125″ wall heights.
‘Dual thermal’ vinyl clad 4″ thick walls (Almond Framing) | Extruded aluminum structural framing with TuffCore vinyl coated polystyrene core insulated filler sections | Almond Stucco finish inside & Almond Stucco finish outside. The insulated core sections are in place so as to be trimmed on site, by the customer, to accommodate exact sizes for each section, slopes, and non-square corners. Includes 5 Electrical Utility Mullions.
Vinyl Windows
Vinyl windows constructed with 3 ¼” thick framing, dual cam locks & our EZ Glide Quad Roller system.
- (1) 54″ wide x 54″ high standard dual sliding windows | 1” Sealed Double Pane Low E Glass (Smart 60)
- (6) 36″ wide x 54″ high standard fixed windows | 1” Sealed Double Pane Low E Glass (Smart 60)
- All sliding windows come with fixed exterior screens
Transoms & Kickplates
Solid EPS core fill above all transoms
Includes 1” Sealed Double Pane Low E Glass (Smart 60) 24″ transom installed above each of the windows & doors
Includes 1” Sealed Double Pane Low E Glass (Smart 60) 24″ kick-plate installed below each of the windows
Solid 2″ EPS core below all kick-plates
Doors
Easy-to-operate sliding patio doors with welded vinyl, continuous weather stripping & warm-edge elastomeric separators
(2) 72″ wide x 80″ high sliding patio doors | 1” Sealed Double Pane Low E Glass
*As a DIY application, the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel, and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by the customer.
(delivered to Las Vegas, NV)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for your specific DIY modular sunroom size, delivered to your location, familiarize yourself with our product, then go to the link below.

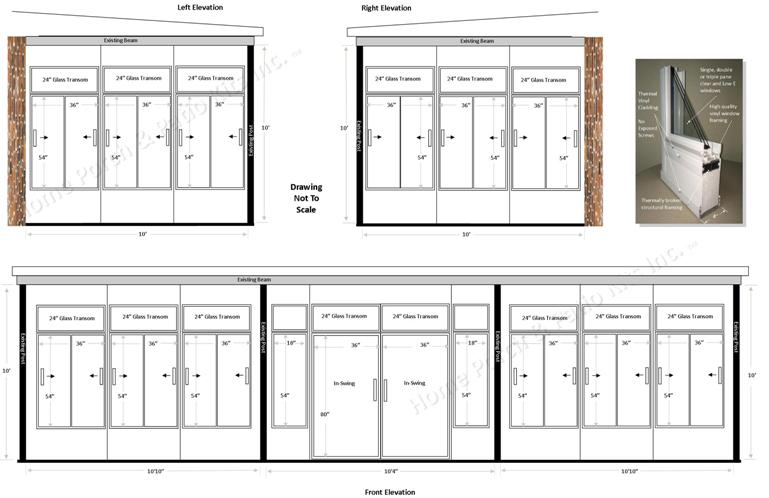

Alpha Plus Modular Sunroom System
Insulated Modular Sunroom Walls
10′ (single wall) | 10′ (single wall) | 10’10” (single wall) | 10’4″ (single wall) | 10’10” (single wall) — 10′ wall heights as indicated in drawing.
3.5″ thick TuffCore clad EPS core walls (White) | White extruded aluminum structural framing with TuffCore vinyl-coated polystyrene core insulated filler sections. The insulated core sections are in place and can be trimmed on site by the customer to accommodate exact sizes for each section, slopes, and non-square corners. Installation includes 4 electrical utility mullions.
Vinyl Windows
Vinyl windows constructed with 3 ¼” thick framing, dual cam locks & our EZ Glide Quad Roller system.
(12) 36″ wide x 54″ high standard dual sliding windows | 1” Sealed Double Pane Low E Glass (Smart 60)
(2) 18″ wide x 54″ high standard fixed windows | 1” Sealed Double Pane Low E Glass (Smart 60)
All sliding windows come with fixed exterior screens
Transoms & Kickplates
Solid EPS core fill above all transoms
Includes 1” Sealed Double Pane Low E Glass 24″ transoms installed above
each of the windows and doors.Solid EPS core fill below all windows
Doors
Standard Pedestrian Swing doors are 1-3/4” thick and come standard with nickel-plated hardware and continuous Q-lon weather stripping around the door jamb and threshold
(2) 36″ wide x 80″ high double-wide French-style pedestrian doors with center astragal | 1” Sealed Double Pane Low E Glass
*As a DIY application, the customer should expect to be making final cuts for roof panel sizes, module heights, channel lengths, EPS Core fill sections, side fascia, backwall C channel, and front gutter lengths on site. Connection hardware to existing surfaces (house wall, fascia board, deck, patio) supplied by the customer.
(delivered to Sacramento, CA)
Pay by Visa, Master Card OR Save 4% by Wire Transfer or Cashier’s Check
If you want a quick estimate for your size of DIY modular sunroom, delivered to your location, familiarize yourself with our product, and then go to the link below.
Approvals & Specifications
I.C.C. Approval (International Conf. of Building Officials) | IRC (International Residential Codes) | IBC (International Building Codes)
CBC (California Building Code) | Meets or Exceeds National Glass Code | Factory Built Housing Approval | C.M.B.S.O.A. Approval (Security Windows)
A-Rated Dual Glass (ALI Laboratories) | U.L. Classified Patented Electrical Raceways | AAMA Approved Windows and Doors
Modular Construction - Easy Installation
A few considerations...
Standard dual sliding windows are available in 36”, 42”, 48”, and 54” widths | All modules require final placement cuts on the jobsite | Modular systems are assembled in a fraction of the time of knock-down assembly systems.
Installation guidelines and support available | Most room sizes can be installed in just 2-4 days | 100% Made in the U.S.A. | List of tools you may need
Life-Time Warranty
- Lifetime Warranty | 20 Year Insulated Glass
- Fully Transferable | Unequalled by any other sunroom
- Incidental Glass Breakage | Warranted as long as you own it!
We Are Here For You!
We have access to all the engineering for all our components, so we can help ensure what you build lasts a lifetime! Our people are not commissioned, so there are no sales pressures and no need to ‘upsell’ you on something you actually don’t need. We are here to help and get you the DIY materials you need to accomplish your goals!
