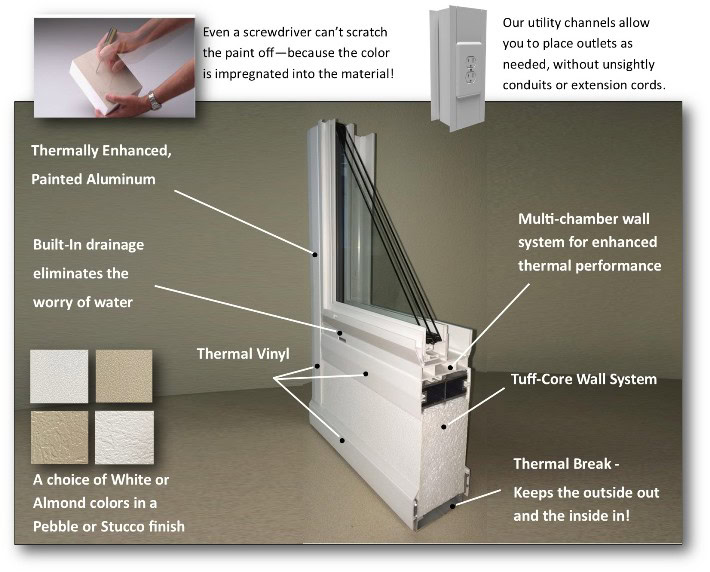

The OMEGA Sunroom Wall System
The OMEGA walls, including the highly insulating ‘dual thermal’ vinyl cladding, are 4″ thick. They are available in either white or almond powder-coated (AAMA specs) aluminum.
The OMEGA wall system is ideal for 4-season use. It is also designed to hide every screw used in the assembly and all the required caulking! As a modular system, it can be assembled in a fraction of the time required for a comparable knock-down system.
All structural member framing is painted aluminum 6063-T6 hardened alloy.
Windows are all made with our exclusive virgin vinyl compound and are optimized for longevity. They are manufactured and built in Ontario, California, in the USA. Vinyl will not crack, peel, or corrode like wood or aluminum frame material can. The vinyl windows are available in either a fixed or sliding format, with a choice of glazing options (see below). All sliding windows come with fixed exterior screens.
It is ideal for 4-season use, and its tough and durable design will last you years with minimal maintenance. It is very conventional while adding value to your home.

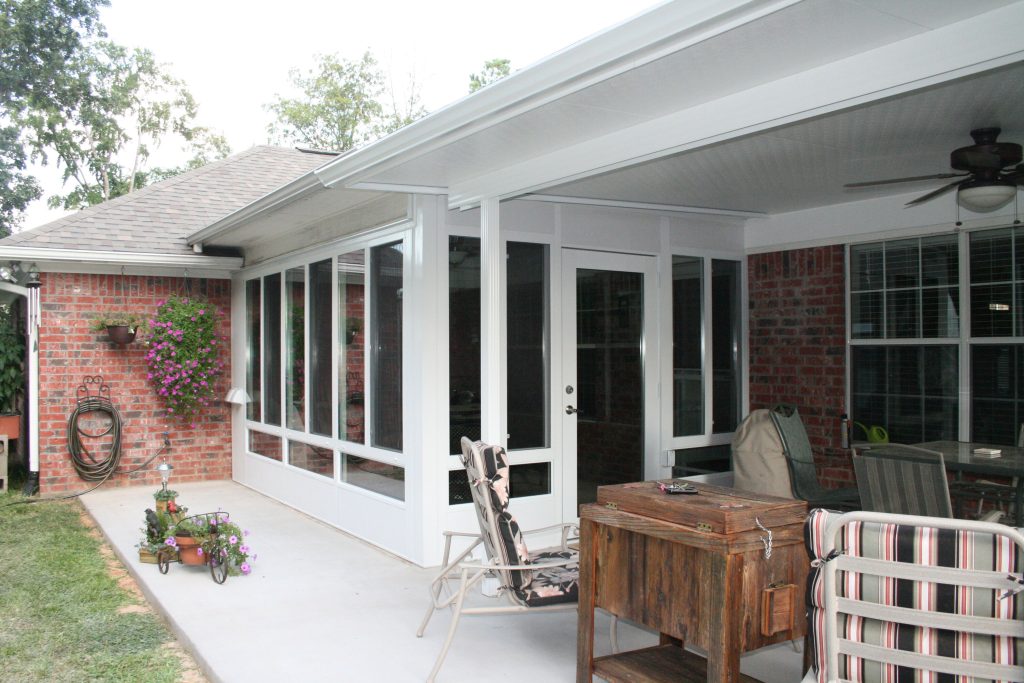

*The pictures on this page are given only to illustrate the features of the OMEGA wall system.
- Ideal for all climates
- High-quality vinyl frame Windows and Pedestrian Doors
- Doors – 5′, 6′ & 8′ Sliders, 3′ Pedestrian
- Thermally Broken Painted Aluminum Structural Framing
- Wall Thickness – 4”
- Available Frame Colors – White & Almond
- Standard window widths – 36″, 42″, 48″ & 54″
*Custom widths are available - Construction – Modular System
- Insulated Walls Panels – White or Almond Color | Pebble or Stucco finish
- Glass Options – Single, Double, or Triple Pane | Clear or Low E windows
*The triple-pane glass option is expensive and should only be considered if you are in extreme weather areas and the rest of your home has triple-pane windows as well! - 1” Dual or Triple Pane Clear or Low E
- Window Type – Vinyl Framing | Dual Sliding windows with fixed exterior screen
- Window Heights – 54”, 60”
Approvals & Specifications
I.C.C. Approval (International Conf. of Building Officials) | IRC (International Residential Codes) | IBC (International Building Codes)
CBC (California Building Code) | Meets or Exceeds National Glass Code | Factory Built Housing Approval | C.M.B.S.O.A. Approval (Security Windows)
A-Rated Dual Glass (ALI Laboratories) | U.L. Classified Patented Electrical Raceways | AAMA Approved Windows and Doors
Modular Construction - Easy Installation
A few considerations...
Standard dual sliding windows are available in 36”, 42”, 48”, and 54” widths | All modules require final placement cuts on the jobsite | Modular systems are assembled in a fraction of the time of knock-down assembly systems.
Installation guidelines and support available | Most room sizes can be installed in just 2-4 days | 100% Made in the U.S.A. | List of tools you may need
Life-Time Warranty
- Lifetime Warranty | 20 Year Insulated Glass
- Fully Transferable | Unequalled by any other sunroom
- Incidental Glass Breakage | Warranted as long as you own it!
We Are Here For You!
We have access to all the engineering information on all our components, so we can help ensure that what you build will last a lifetime. Our people are not commissioned, so there are no sales pressures and no need to ‘upsell’ you on something you actually don’t need. We are here to help and provide you with the DIY materials you need to achieve your goals!
