Included With Your Patio Cover

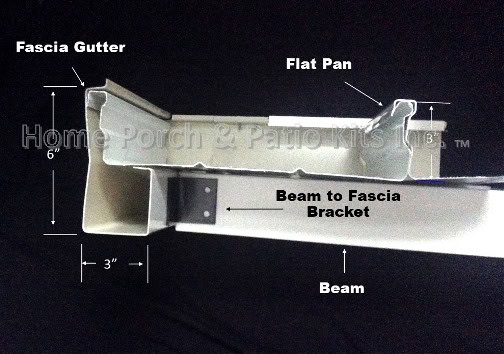

- 3″ x 12″ x .0.24″ roll formed aluminum Flat pans
- .050 roll-formed aluminum fascia gutters on all four sides
- (1) 6 pc. downspout assembly
- Angles for the beam to the fascia connection
- (1) 16′ – 3″ x 3″ x .078″ set back beam
- (4) corner connections
- 1/2″ TEK screws, caulking, and touch-up paint
- (Leaf guards are optional | additional charge)
- (3) 8′ – 3″ x 3″ x .078″ posts
- Bottom post brackets
- Top posts to beam brackets
Notes
Includes all hardware ‘internal’ to the patio cover. The drop (house wall to the front of the unit) should be fixed at 1/4″ per foot of projection.
Pans will span 8′ 6″ under 20/115 loading.
Delivery
Price is the delivered cost to most states in our Current Delivery Zones | Some states may incur additional shipping charges
