Included With Your Patio Cover

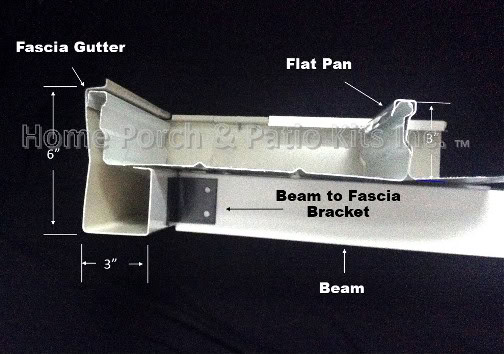

- 3″ x 12″ x .030″ roll formed aluminum Flat pans
- .050 roll formed aluminum fascia gutters on all four sides
- (4) 6 pc. downspout assembly
- Angles for beam to fascia connection
- (2) 16′ – 3″ x 3″ x .125″ set back beams
- (4) corner connections
- 1/2″ TEK screws, caulking and touch up paint
- (Leaf guards are optional | additional charge)
- (5) 8′ – 3″ x 3″ x .078″ posts
- Bottom post brackets
- Top posts to beam brackets
Notes
Includes all hardware ‘internal’ to the patio cover. The drop (house wall to the front of the unit) should be fixed at 1/4″ per foot of projection.
Pans will span 10’6″ under 20/115 loading.
Delivery
Price is the delivered cost to most states in our Current Delivery Zones | Some states may incur additional shipping charges
